Busch Liquid Ring Vacuum Pumps
Liquid Ring
Liquid ring pumps are available in single- and two-stage versions. In single-stage versions, compression is carried out once. In two-stage versions, the pumped medium is compressed again to allow higher vacuum levels to be achieved. Operation as a compressor is also possible with some models of liquid ring vacuum pumps.
The operating fluid is usually water, but other liquids may be used if required to suit the process conditions.
- DOLPHIN LX - 33 hPa (mbar) - single-stage (valved) vacuum pump
- DOLPHIN LA - 130 hPa (mbar) - single-stage - Available in long coupled or close coupled verisions.
- DOLPHIN LB - 33 hPa (mbar) - two-stage vacuum pump / compressor

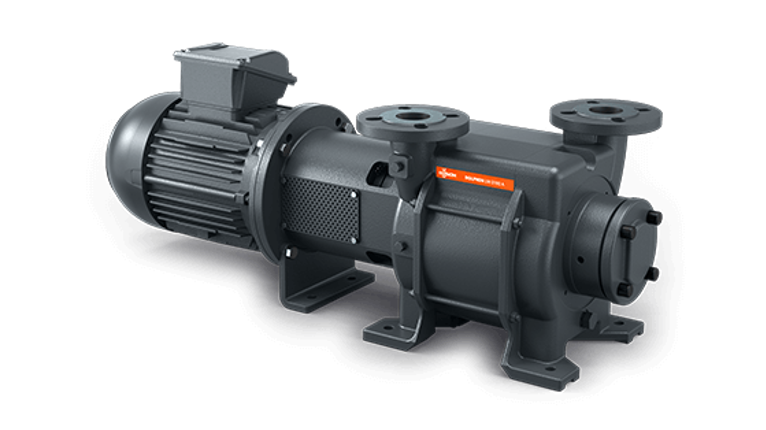

- DOLPHIN LM - 130 hPa (mbar) - single-stage
- DOLPHIN LT - 33 hPa (mbar) - two-stage
- DOLPHIN VL - 33/130 hPa (mbar) - single- or two-stage
- DOLPHIN LR - 33 hPa (mbar) - single-stage (valved)

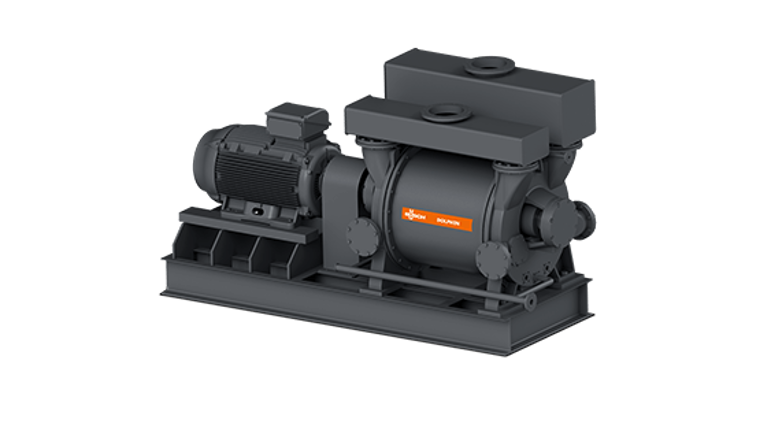

- DOLPHIN LG - 160 hPa (mbar) - single-stage (valved)

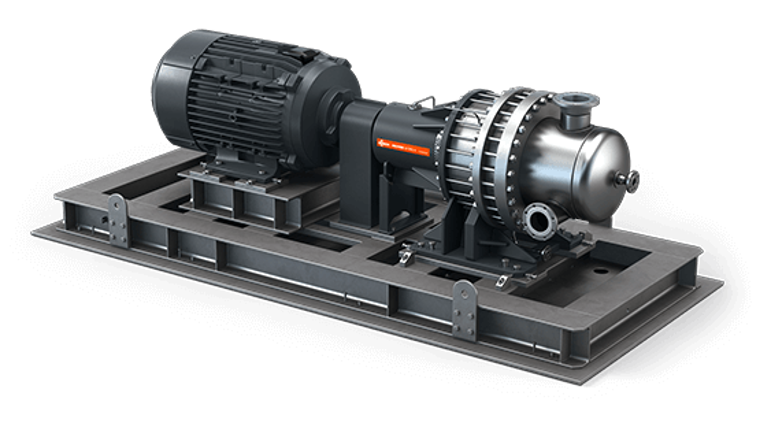

- DOLPHIN LN - 9 bar(g) - single- or two-stage compressor
Contact us with your requirements
Busch Oil-lubricated rotary vane vacuum pumps
Oil-lubricated rotary vane vacuum pumps
Rotary vane vacuum pumps are available in single- and two-stage versions and can be operated with different types of lubrication or dry-running. In single-stage versions, compression is carried out once. In two-stage versions, the pumped medium is compressed again in a second stage to allow for higher vacuum levels.
Rotary vane compressors operate according to the same principle.
- R5 single-stage oil-lubricated
- HUCKEPACK two-stage oil-lubricated

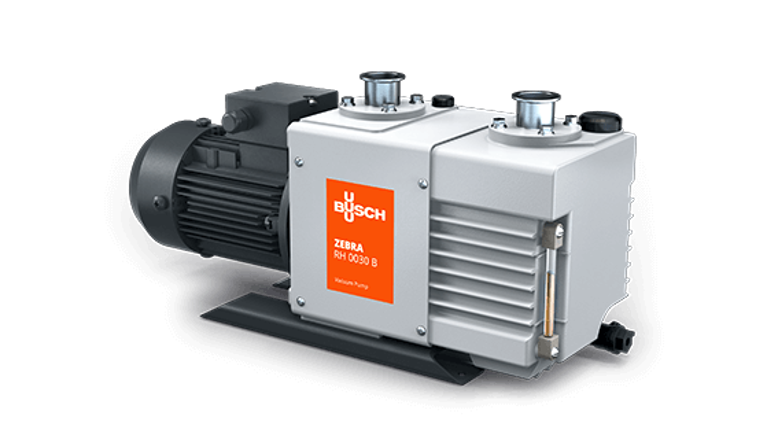

- ZEBRA two-stage oil-lubricated

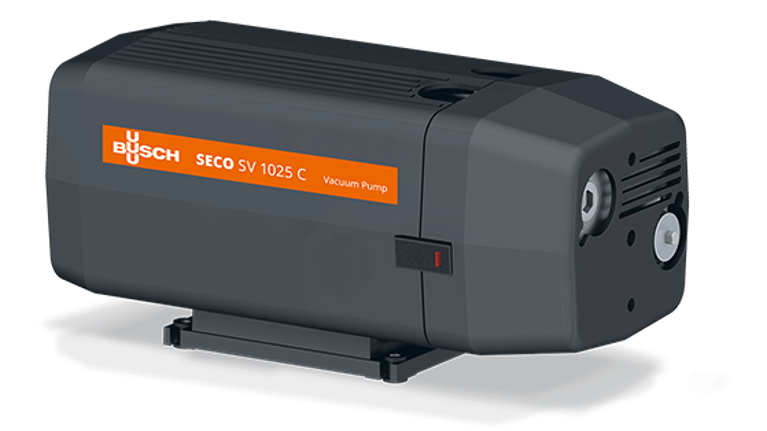

- SECO single-stage dry-running
Contact us with your requirements
